TERRESTRIAL
YAGI ANTENNA 6 ELEMENTS UHF 445-460 MHZ
YAGI
AUC-6D
UHF
AUC-6D - YAGI ANTENNA 6 ELEMENTS UHF 445-460 MHZ -

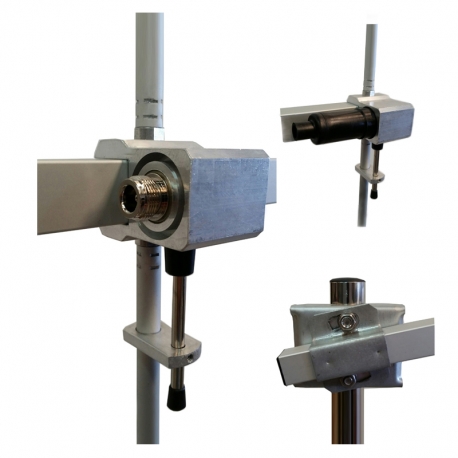

AUC-6D - YAGI ANTENNA 6 ELEMENTS UHF 445-460 MHZ - CONNECTOR VIEW
CONNECTOR VIEW
AUC-6D - YAGI ANTENNA 6 ELEMENTS UHF 445-460 MHZ - HORIZONTAL RADIATION DIAGRAM
HORIZONTAL RADIATION DIAGRAM
AUC-6D - YAGI ANTENNA 6 ELEMENTS UHF 445-460 MHZ - VERTICAL RADIATION DIAGRAM
VERTICAL RADIATION DIAGRAM
AUC-6D YAGI ANTENNA 6 ELEMENTS UHF 445-460 MHZ
Elements6
Power150W
Gain (dB)10dBd (12.15dBi)
Impedance50 ohm
MaterialAluminum
R.O.E - S.W.R - T.O.S1,5:1
Connector typeFemale N connector
Radiator lenght (mm.)1150 mm
PolarizationVertical & Horizontal
Temperaturefrom -10º to 50º
Adjust typeGamma Match
Mastil diameter (mm.)25-45
Element lenght (mm.)335 mm (max.)
Length1150 mm.
Width350 mm.
High25 mm.
Weight1700 gr.
Quantity1
Package dimensions1200 x 80 x 80 cm.
