TERRESTRIAL
YAGI ANTENNA 5 ELEMENTS UHF 505-520 MHZ
YAGI
AUC-5H
UHF
AUC-5H - YAGI ANTENNA 5 ELEMENTS UHF 505-520 MHZ -
AUC-5H - YAGI ANTENNA 5 ELEMENTS UHF 505-520 MHZ -
AUC-5H - YAGI ANTENNA 5 ELEMENTS UHF 505-520 MHZ - VERTICAL RADIATION PATTERN
VERTICAL RADIATION PATTERN
AUC-5H - YAGI ANTENNA 5 ELEMENTS UHF 505-520 MHZ - HORIZONTAL RADIATION PATTERN
HORIZONTAL RADIATION PATTERN
AUC-5H YAGI ANTENNA 5 ELEMENTS UHF 505-520 MHZ
Elements5
Power300W
Gain (dB)9dBd (11,15dBi)
Impedance50 ohm
MaterialAluminum

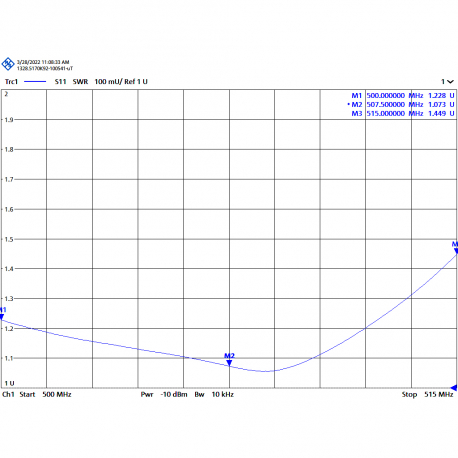

R.O.E - S.W.R - T.O.S1,3:1
Connector typeFemale N connector
PolarizationVertical & Horizontal
Wind load98 N ( 150 Km.)
Temperaturefrom -10º to 50º
Adjust typeDipolo Gamma Match
Front to back radio20 dB
Mastil diameter (mm.)30-45
Length945 mm.
Width347 mm.
High25 mm.
Weight1920 gr.
Quantity1
Package dimensions153 x 8 x 8 cm.
ES  EN  FR
Yagi UHF antenna 505-520 Mhz 5 elements
