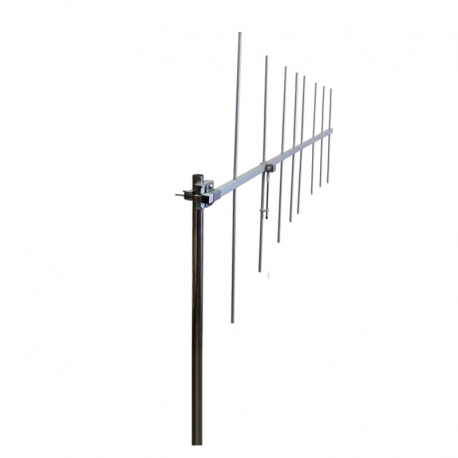

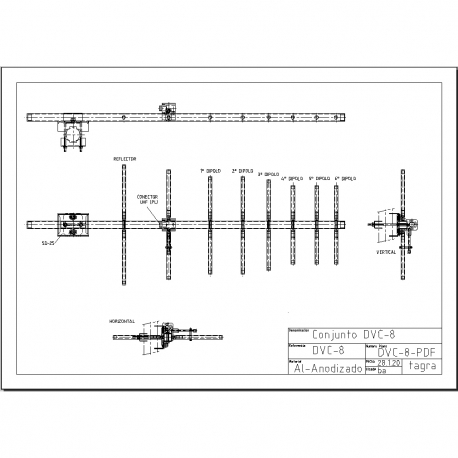

DVC-8AN | YAGI ANTENNA 6 ELEMENTS VHF NH 136-146 MHz |
Elements | 68 |
Power | 150W |
Gain | 11 dBd (13,15 dBi) |
Impedance | 50 ohm |
Material | Anodized aluminum QUALANOD certificate |
R.O.E - S.W.R - T.O.S | 1,5:1 |
Connector type | N (FEMALE) |
Radiator lenght | 2 m |
Electrical protection | Yes |

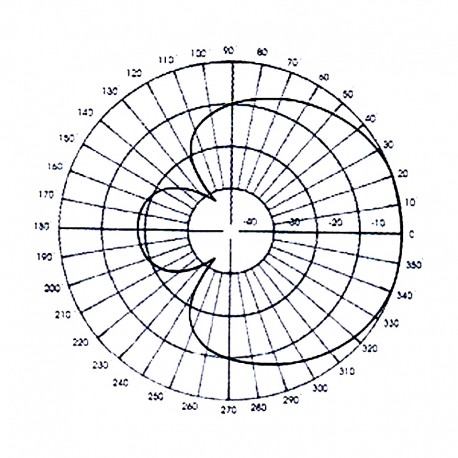

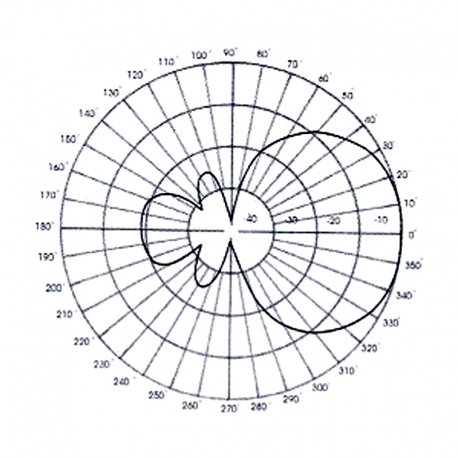

Polarization | Vertical & Horizontal |
Wind load | 180 km/h |
Temperature (°C) | from -10º to 50º |

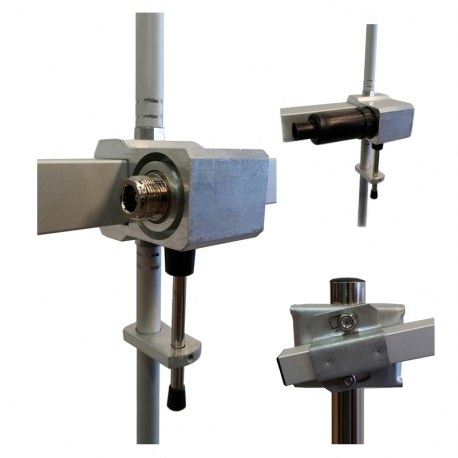

Adjust type | Dipolo Gamma match |
Front to back radio | 16 dB |
Mastil diameter | 0,030-0,045 m |

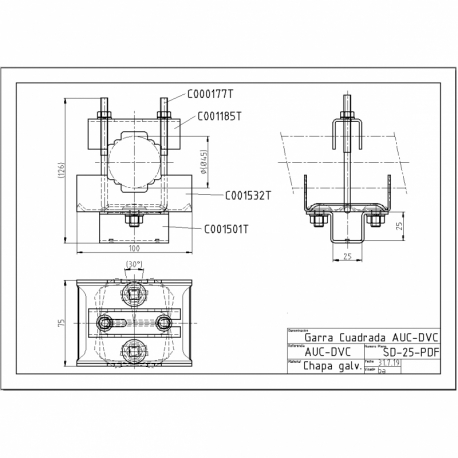

Support | Included |
Element lenght | 0,96 m |
Length | 2,20 m |
Weight | 2,25 kg |
