| DVL-70/3 - YAGI ANTENNA 3 ELEMENTS VHF LOW BAND 66-77 MHz | |
| Type | Yagi directive |
| Elements | 3 |
| Power | 200W |
| Gain | 6 dBd (8,15 dBi) |
| Impedance | 50 ohm |
| Material | Anodized aluminum QUALANOD certificate |
| R.O.E - S.W.R - T.O.S | 1,5:1 |
| Connector type | Female N connector |
| Radiator lenght | 1,70 m |

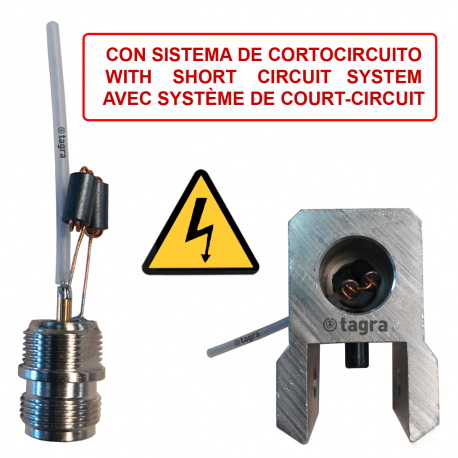

| Electrical protection | Yes |
| Polarization | Vertical & Horizontal |
| Adjust type | Gamma match |
| Rel. front/back | 18 dB |
| Mastil diameter | 0,025-0,045 m |
| Support | Included |
| Element lenght | 0,20 m |
| Length | 1,70 m |
| Weight | 2,30 kg |
| Package dimensions | 130 x 10 x 9 cm |
| ES EN FR | |
Antennas made with high strength aluminium corrosion-free.
Acccomplish mounting the antenna securing that fixation of several parts have been properly tightened, in order to avoid future troubles mechanical or electrical nature.
