TERRESTRIAL
YAGI ANTENNA 4 ELEMENTS VHF 134⁠-⁠148 MHz
YAGI / DIRECTIVES
DVC-4A
VHF

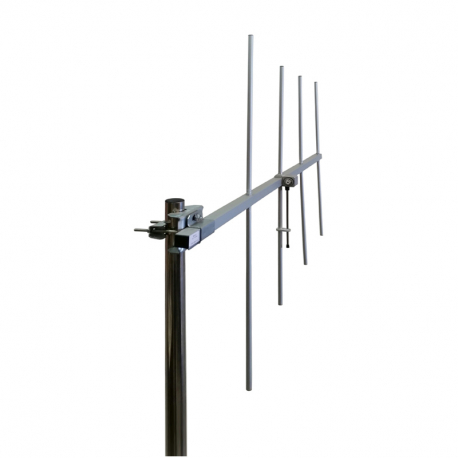

DVC-4A - YAGI ANTENNA 4 ELEMENTS VHF 134⁠-⁠148 MHz -

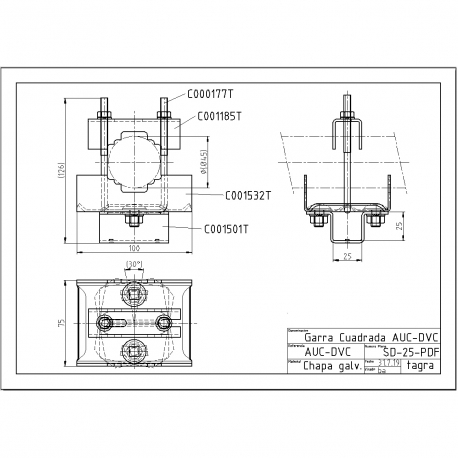

DVC-4A - YAGI ANTENNA 4 ELEMENTS VHF 134⁠-⁠148 MHz - Support and connector view
Support and connector view

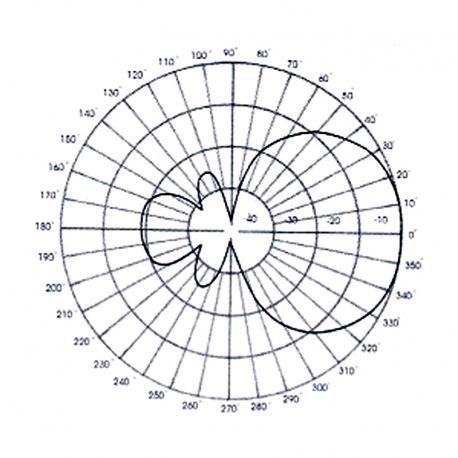

DVC-4A - YAGI ANTENNA 4 ELEMENTS VHF 134⁠-⁠148 MHz - Vertical radiation pattern
Vertical radiation pattern

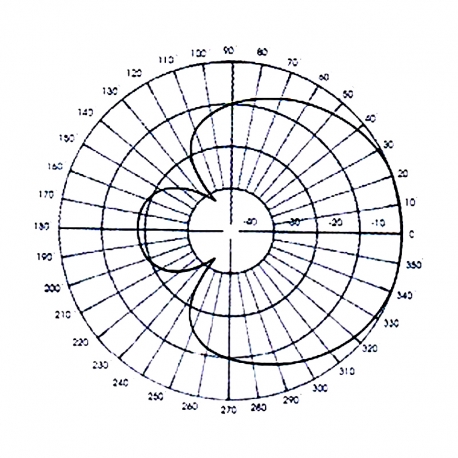

DVC-4A - YAGI ANTENNA 4 ELEMENTS VHF 134⁠-⁠148 MHz - Horizontal radiation pattern
Horizontal radiation pattern
DVC-4A - YAGI ANTENNA 4 ELEMENTS VHF 134⁠-⁠148 MHz -
DVC-4A - YAGI ANTENNA 4 ELEMENTS VHF 134⁠-⁠148 MHz -
DVC-4A - YAGI ANTENNA 4 ELEMENTS VHF 134⁠-⁠148 MHz -
DVC-4A YAGI ANTENNA 4 ELEMENTS VHF 134⁠-⁠148 MHz
Elements4
Power500W
Gain7 dBd (9,15 dBi)
Impedance50 ohm
MaterialAnodized aluminum

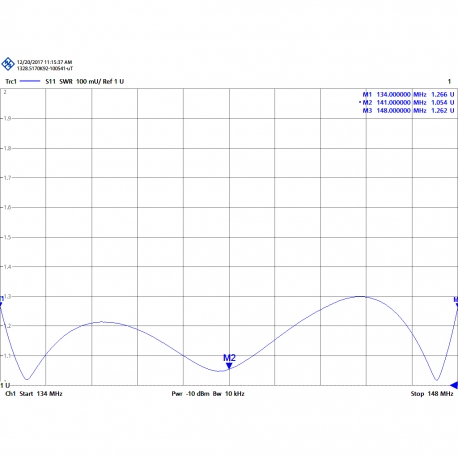

R.O.E - S.W.R - T.O.S1,3:1
Connector typeUHF (PL)
Radiator lenght1,3 m

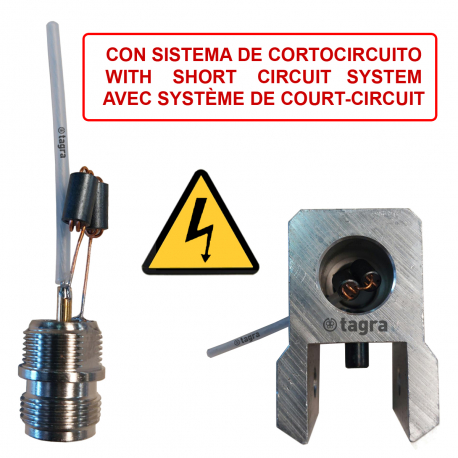

Electrical protectionYes
PolarizationVertical & Horizontal
Wind load180 km/h
Temperaturefrom -10º to 50º
Adjust typeGamma match
Front to back radio18 dB
Mastil diameter0,025-0,045 m
SupportIncluded
Element lenght1,09 m
Length1,30 m
Weight2,10 kg
