TERRESTRIAL
YAGI ANTENNA 2 ELEMENTS VHF 134⁠-⁠148 MHz
YAGI / DIRECTIVES
DVC-2A
VHF
DVC-2A - YAGI ANTENNA 2 ELEMENTS VHF 134⁠-⁠148 MHz -

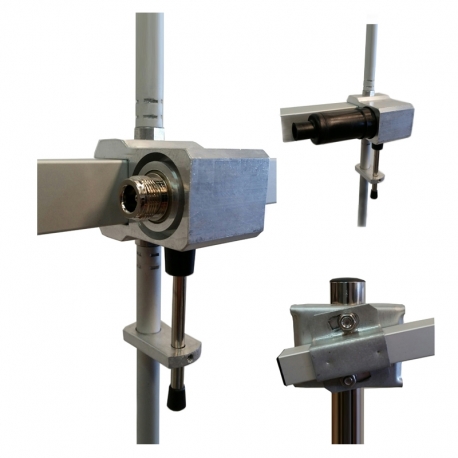

DVC-2A - YAGI ANTENNA 2 ELEMENTS VHF 134⁠-⁠148 MHz - Support and connector view
Support and connector view
DVC-2A - YAGI ANTENNA 2 ELEMENTS VHF 134⁠-⁠148 MHz -
DVC-2A - YAGI ANTENNA 2 ELEMENTS VHF 134⁠-⁠148 MHz - Vertical radiation pattern
Vertical radiation pattern
DVC-2A - YAGI ANTENNA 2 ELEMENTS VHF 134⁠-⁠148 MHz - Horizontal radiation pattern
Horizontal radiation pattern
DVC-2A - YAGI ANTENNA 2 ELEMENTS VHF 134⁠-⁠148 MHz -
DVC-2A - YAGI ANTENNA 2 ELEMENTS VHF 134⁠-⁠148 MHz -
DVC-2A YAGI ANTENNA 2 ELEMENTS VHF 134⁠-⁠148 MHz
Elements2
Power200W
Gain5 dBd (7,15 dBi)
Impedance50 ohm
MaterialAnodized aluminum
R.O.E - S.W.R - T.O.S1,3:1
Connector typeUHF (PL)
Radiator lenght0,70 m

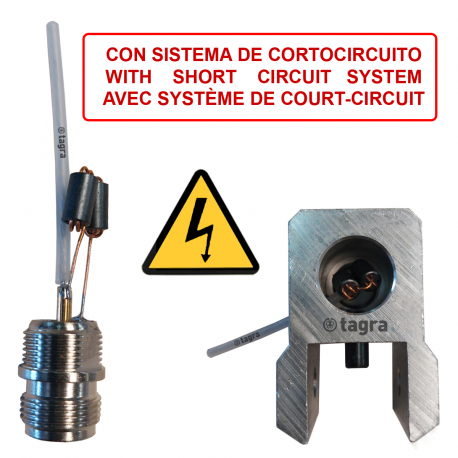

Electrical protectionYes
PolarizationVertical & Horizontal
Wind load180 km/h
Temperaturefrom -10º to 50º
Adjust typeGamma match
Front to back radio18 dB
Mastil diameter0,025-0,045 m
SupportIncluded
Element lenght0,96 m
Length0,70 m
Weight2,10 kg
