TERRESTRIAL
YAGI ANTENNA 10 ELEMENTS UHF 445⁠-⁠460 MHz
YAGI / DIRECTIVES
AUC-10D
UHF
AUC-10D - YAGI ANTENNA 10 ELEMENTS UHF 445⁠-⁠460 MHz -
AUC-10D - YAGI ANTENNA 10 ELEMENTS UHF 445⁠-⁠460 MHz -

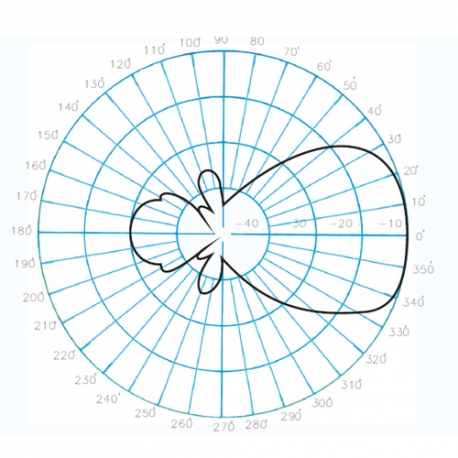

AUC-10D - YAGI ANTENNA 10 ELEMENTS UHF 445⁠-⁠460 MHz - Vertical radiation pattern
Vertical radiation pattern
AUC-10D - YAGI ANTENNA 10 ELEMENTS UHF 445⁠-⁠460 MHz - Horizontal radiation pattern
Horizontal radiation pattern

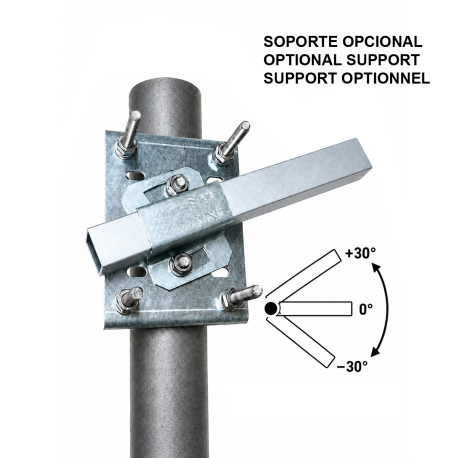

AUC-10D - YAGI ANTENNA 10 ELEMENTS UHF 445⁠-⁠460 MHz -
AUC-10D - YAGI ANTENNA 10 ELEMENTS UHF 445⁠-⁠460 MHz -
AUC-10D YAGI ANTENNA 10 ELEMENTS UHF 445⁠-⁠460 MHz
TypeYagi directive
Elements10
Power150W
Gain12 dBd (14,15 dBi)
Impedance50 ohm
MaterialAnodized aluminum
R.O.E - S.W.R - T.O.S1,5:1
Connector typeFemale N connector
Electrical protectionYes
PolarizationVertical & Horizontal
Wind load180 km/h
Temperaturefrom -10º to 50º
Adjust typeDipolo Gamma Match
Mastil diameter0,030-0,045 m
SupportIncluded
Length1,80 m
Weight1,93 kg
