OMNI BASE ANTENNA CB 26-28 MHZ
OMNIDIRECTIONAL BASE
M-27 1/2
CB
M-27 1/2 - OMNI BASE ANTENNA CB 26-28 MHZ - Reduced image (real high 5 methers)
Reduced image (real high 5 methers)
M-27 1/2 - OMNI BASE ANTENNA CB 26-28 MHZ - Two segment antenna
Two segment antenna
M-27 1/2 - OMNI BASE ANTENNA CB 26-28 MHZ -

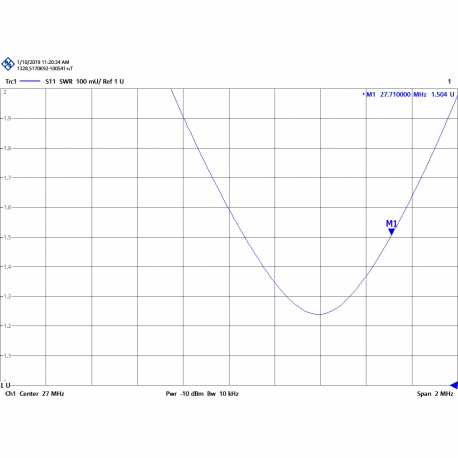

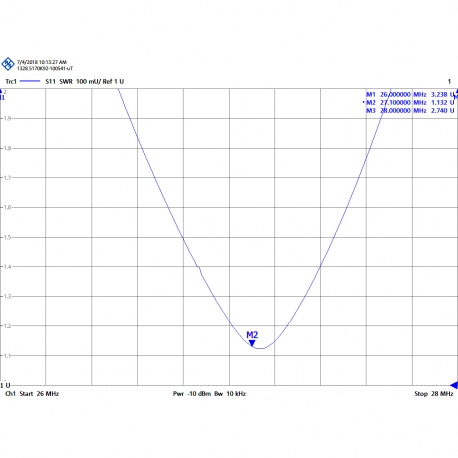

M-27 1/2 - OMNI BASE ANTENNA CB 26-28 MHZ - FREQUENCY TABLE
FREQUENCY TABLE
M-27 1/2 OMNI BASE ANTENNA CB 26-28 MHZ
Power300W
Gain (dB)3 dBd (5,15 dBi)
Impedance50 ohm
MaterialFiber
ColourWhite
R.O.E - S.W.R - T.O.S1,2:1
Type mountingMast 25-60 mm
Connector typeConnector PL
Electrical shunt shield protectionYes
PolarizationVertical
Wind load150 Km
Temperaturefrom -40º to 55º

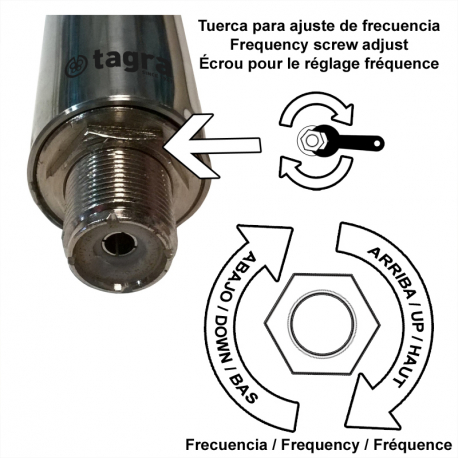

Adjust typeAdjusted
Length5300 mm.
Width40 mm.
High40 mm.
Weight6500 gr.
Quantity1
Package dimensions300 x 8 x 8 cm.
ES  EN  FR

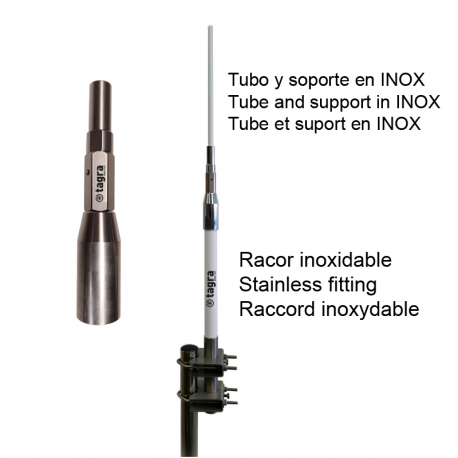

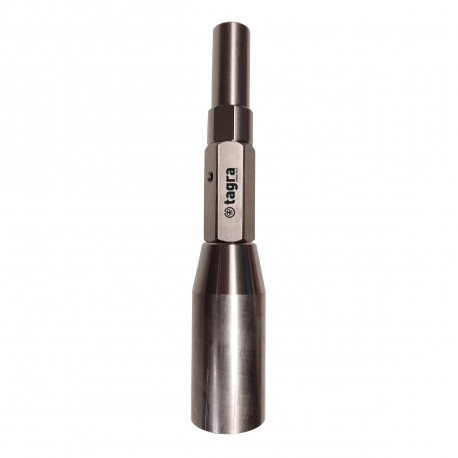

Manufactured with fiber tube and mounting based in two sub-parts of 2,5 methers each one.
