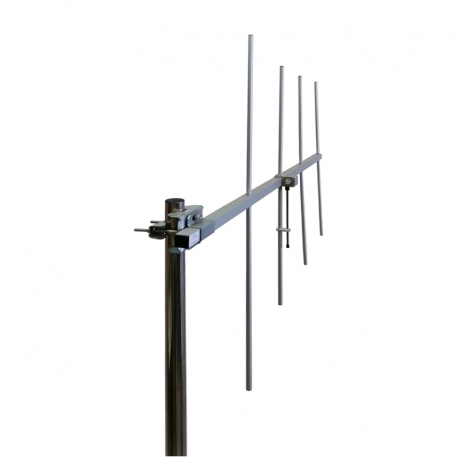

FMD-4 | YAGI ANTENNA 4 ELEMENTS VHF LOW BAND 88-108 MHz |
Type | Yagi directive |
Elements | 4 |
Power | 200W |
Gain | 7 dBd (9,15 dBi) |
Impedance | 50 ohm |
Material | Anodized aluminum |

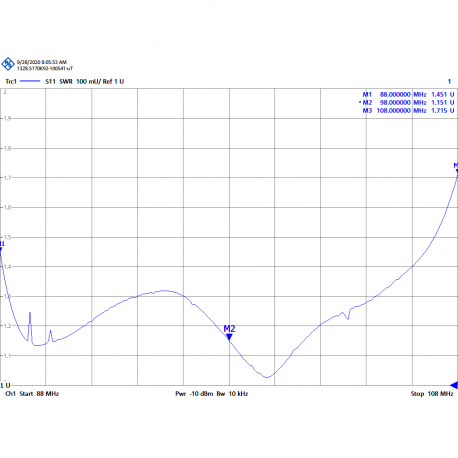

R.O.E - S.W.R - T.O.S | 1,5:1 |
Connector type | Female N connector |
Radiator lenght | 1,475 m |

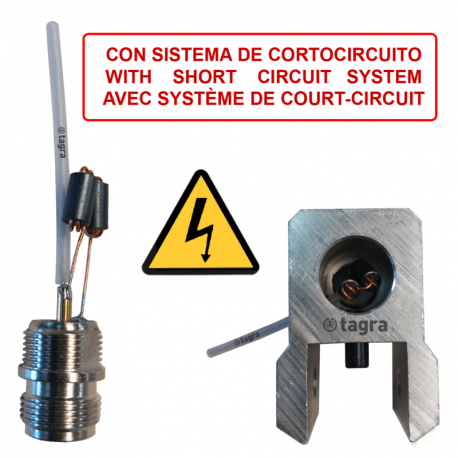

Electrical protection | Yes |
Polarization | Vertical & Horizontal |
Adjust type | Gamma match |
Mastil diameter | 0,025-0,045 m |

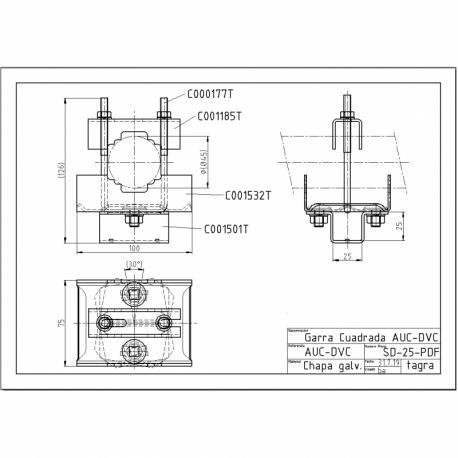

Support | Included |
Length | 2,20 m |
Weight | 2,15 kg |
ES EN FR |
Acccomplish mounting the antenna securing that fixation of several parts have been properly tightened, in order to avoid future troubles mechanical or electrical nature.
