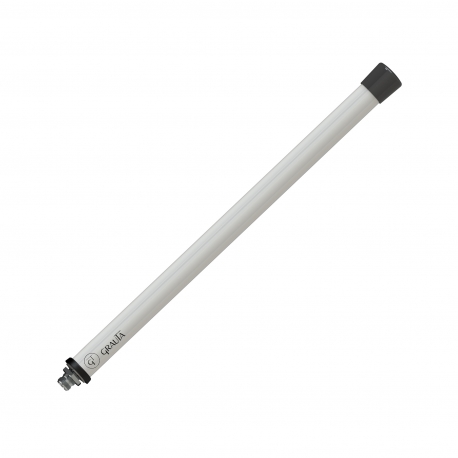

| GT-WAM5G - OMNI ANTENNA 5G | |
| Type | 1/2 λ dipole |
| Power | 100W |
| Gain | 0/3/7 dBd (2.15/5.15/9.15 dBi) |
| Impedance | 50 ohm |
| Material | PC UV, PTFE, PE |
| R.O.E - S.W.R - T.O.S | < 3.0:1 / < 2.5:1 |
| Connector type | N female |
| Wind load | 55 m/s (200 km/h) |
| Temperature (°C) | -55C to +70C |
| Mastil diameter | 0,025-0,045 m |
| Waterproof level | IP66 |
| Length | 0,40 m |
| Weight | 0,30 kg |
| Package dimensions | 50 x 8 x 8 cm |
| ES EN FR | |
Long range high gain multiband antenna, covering 698 – 3800 MHz. This wall mounted antenna is suitable for GSM(2G), UMTS(3G), LTE(4G) and 5GNR(5G) devices.
The antenna supports Public Safety, LTE700/800 MHz, IOT/M2M, 868/915 MHz, cellular/mobile, 2G/3G/4G/5G, CCTV, security, smart metering, remote telemetry applications and etc.
Frequencies:698-960 MHz: 0 dBd, 2.15 dBi
1427-1518/1710-2170 MHz: 3 dBd, 5.15 dBi
2300-2690/3300-3800 MHz: 7 dBd, 9.15 dBi
