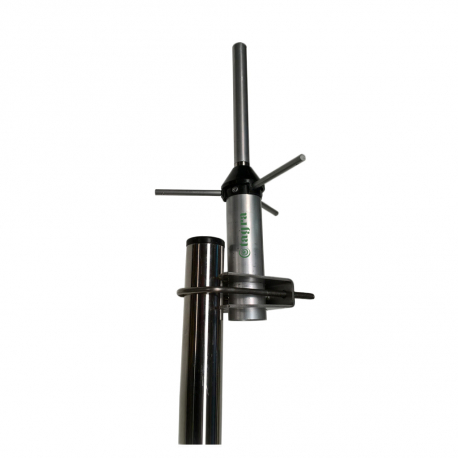

| GP-400-5/8 - OMNI GSM ANTENNA 380-490 MHz | |
| Type | Ground plane 5/8 |
| Power | 125 W |
| Gain | 3 dBd (5,15 dBi) |
| Impedance | 50 ohm |
| Material | Aluminum |
| R.O.E - S.W.R - T.O.S | 1,3:1 |

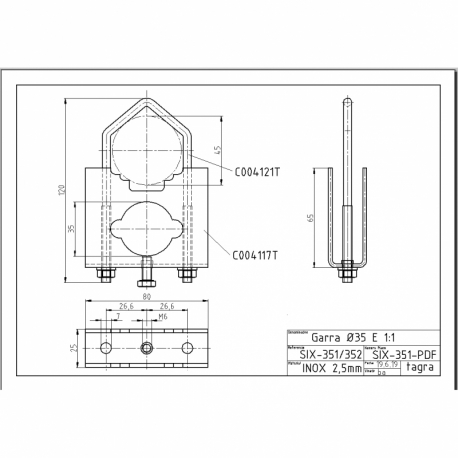

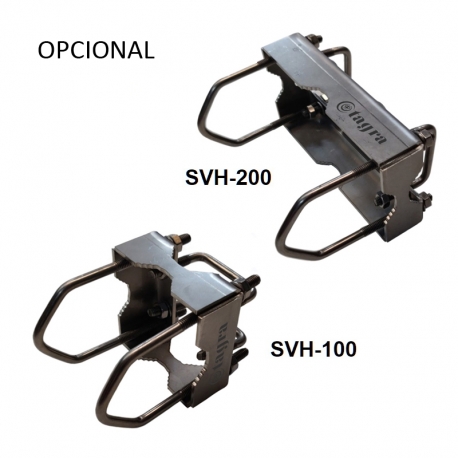

| Type mounting | Mast 0,030-0,045 m |
| Connector type | Female N connector |
| Radiator lenght | 0,43 m |
| Polarization | Vertical |
| Adjust type | Adjusted |
| Support | Included |
| Radial length | 0,16 m |
| Length | 0,43 m |
| Weight | 0,75 kg |
| Package dimensions | 63 x 8 x 8 cm |
| ES EN FR | |

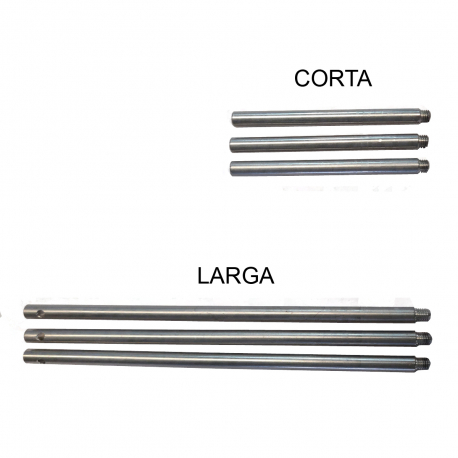

| TUBE Ø 16 | ROD | |
| 380 MHz | 540 mm | short |
| 400 MHz | 540 mm | long |
| 433 MHz | 540 mm | short |
| 460 MHz | 445 mm | short |
| 490 MHz | 370 mm | short |
